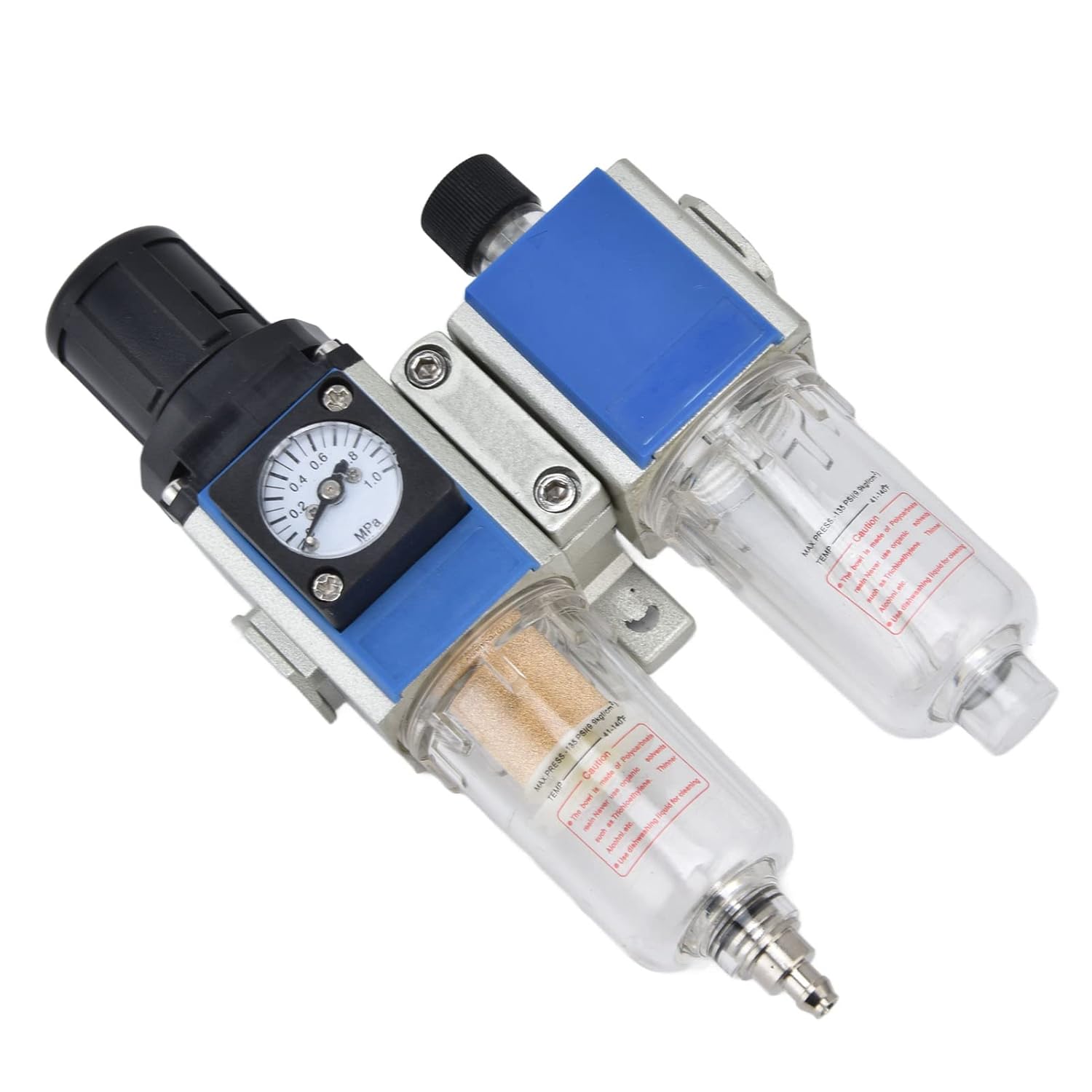

Filter Regulator Unit, Air Filter Pressure Regulator Lubricator Combination Water Oil Separator Trap Compressor Accessories (GFC200-08)

Specification: Item Type: Air Compressor Filter Material: Aluminium Alloy Model GFC200-06 GFC200-08 Working Medium Air Tube Calibre PT1/8 PT1/4 Filter Accuracy 40μm or 5μm Operating Pressure Range Automatic and Differential Pressure Drainage Type: 0.15-0.9Mpa (20-130Ps) Manual Drainage Type: 0.05-0.9Mpa (7-130Ps) Proof Pressure 1.5Mpa(215Psi) Operating Temperature Range -20℃-70℃ Filter Cup Capacity 10CC Oil Supply Cup Capacity 25CC Recommended Lubricating Oil ISO VG32 or Equivalent Oil Components Filter Filter GFR200-06 GFR200-08 Atomized Lubricator GL200-06 GL200-08 Package List: 1 x Air Compressor Filter Note: 1. Keep the pipeline clean to prolong the service life; 2. The bowl body is made of polycarbonate resin, do not use solvents, such as diluent, etc. Use dish soap for cleaning.

• Work is simpler: This air compressors flowing filter has 3 types of drainage methods to choose from: manual, differential pressure, and automatic.
• This uniquely designed and shaped product is deeply loved by most customer ,and it can work for several years.
• Fixed firmness: The air compressor filter is secure and fast, and a convenient installation can be completed in a few minutes.
• Useful Filter: Works stably under 1.5Mpa proof pressure, the oil and water separator enables full removal of water and particles.
• Practical Use: With Air Compressor Filter, one combination unit that can work as filter, pressure regulator and lubricator, very practical and
